Understanding Concrete Cylinder Break Machines and the Necessity of Destructive Testing

📅 Today 🏷️ Giatec Scientific Inc.

Explore the function of concrete cylinder break machines, the implications of destructive testing, and how real-time strength monitoring complements traditional methods in concrete quality control.

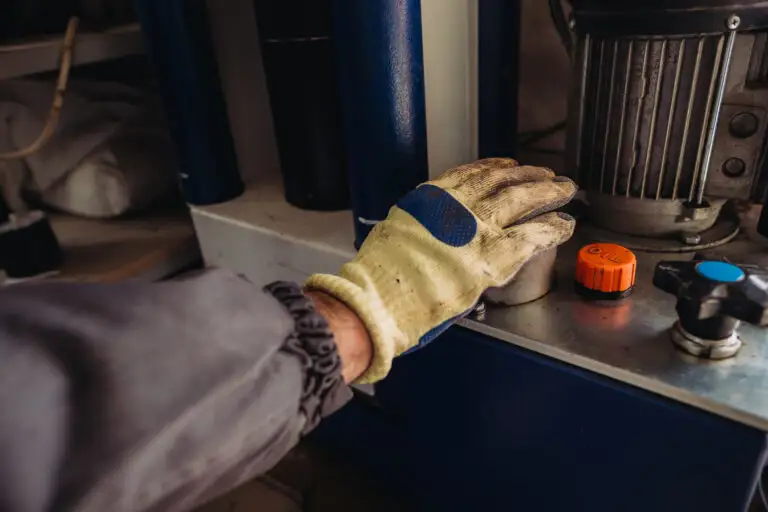

A concrete cylinder break machine, also known as a compression testing machine, is a crucial piece of equipment in the construction industry, specifically designed to assess the compressive strength of cured concrete cylinders. This machine applies a controlled axial load to the specimen until it fails, providing the compressive strength value necessary for code acceptance. The result obtained from this test reflects the cylinder's performance under standard curing conditions, which may not accurately represent the in-place strength of concrete within a structure at the same time.
The operation of a concrete cylinder break machine follows a standardized procedure, adhering to ASTM C39/AASHTO T22 protocols. The machine comprises a rigid load frame, an upper platen with a spherical bearing block, a lower platen, and a load-measuring mechanism like a calibrated load cell or hydraulic gauge. Older models require manual operation for load application, while newer versions feature electronic controls that automate the loading process and directly integrate results into quality management software.
For over 80 years, compression testing has been the benchmark acceptance test for structural concrete, referenced by most building codes for verifying compressive strength. While this method is widely used in North America, similar testing is conducted using cube molds under standards like BS EN 12390-3 in regions such as the UK, EU, and parts of the Middle East.
The process of conducting a cylinder break test includes casting fresh concrete into specific molds, moist-curing the specimens, and preparing them for testing by capping or grinding the ends to ensure they meet the required specifications. Once prepared, the cylinder is positioned on the machine, and an axial load is applied steadily until the cylinder fails. The technician records the maximum load and the failure pattern, subsequently calculating the compressive strength in psi (MPa).
However, it is crucial to note that the strength value obtained from a cylinder break machine only reflects the performance of that specific specimen cured under controlled conditions. It cannot predict the actual strength of concrete in situ, which may differ significantly due to various factors like temperature and curing conditions at the job site. This discrepancy is often referred to as the Crossover Effect, where mass concrete can initially gain strength faster than standard-cured cylinders but may ultimately plateau at a lower strength.
Despite advancements in concrete technology, destructive cylinder testing remains a necessary practice in most jurisdictions. Building codes, particularly ACI 318, mandate the use of standard-cured cylinder breaks as the official acceptance test for concrete compressive strength. While alternative methods, such as the maturity method standardized under ASTM C1074, provide valuable supplementary data on in-place strength, they do not replace the necessity for traditional cylinder breaks.
Wireless maturity sensors, such as SmartRock®, enhance the process by providing real-time strength monitoring. These sensors, which are placed on rebar prior to pouring, track temperature and estimate in-place strength based on historical data. This real-time data can expedite decisions regarding formwork removal and other time-sensitive operations, reducing the reliance on lab turnaround times for strength confirmation.
Several projects have successfully integrated SmartRock® technology alongside traditional break tests, achieving significant reductions in testing costs and project timelines. For example, at a site in Baton Rouge, SmartRock data confirmed compressive strength ahead of schedule, allowing for reduced cylinder testing needs. Similarly, PCL Construction utilized real-time data to complete a major tower project four months ahead of schedule.
In conclusion, while concrete cylinder break machines play a pivotal role in concrete quality control and destructive testing remains essential for code compliance, the integration of real-time strength monitoring technologies presents an opportunity for improved efficiency in construction practices. It is important for construction teams to understand the requirements set forth by local building codes and to consider the complementary use of these technologies to ensure both compliance and project success.
